Sensor Activated Electronic Hand Washing Faucet For Pre-Tempered Or Hot And Cold Water Operation With Integral Spout Temperature Mixer (AC Powered)

Sensor Activated Electronic Hand Washing Faucet

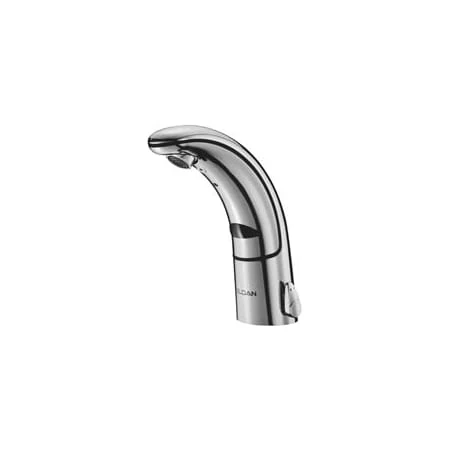

For pre-tempered or hot and cold water operation. Sloan’s Optima i.q. EAF-100 Series electronic hand washing faucets operate by means of a dual infrared sensor and microprocessor based logic that utilize self-adapting technology to ensure superior performance. The modular design incorporates all of the operating components of the faucet, including the sensor, solenoid and circuitry above the sink within a die-cast metal spout. ISM models feature an integral temperature control lever which allows the user to adjust the water temperature. This adjustment can also be converted to a fixed setting. EAF faucets ordered without the ISM variation must be connected to a single, pretempered water supply. The i.q.-Click feature allows the user to place the faucet into optional function modes, including “continuous run” and “temporary off” simply by pressing a button on the spout. The use of the i.q.-Click feature is recommended only in installations where users have a regular familiarity with the faucet (i.e., executive and non-public rest rooms). Models furnished with the i.q.-Click feature are also available with a Pop Up Drain. Optima EAF-1″ series faucets are powered by a 6 VDC plug-in transformer.

• Modular One-piece Construction with all Concealed Components above deck
• Double Infrared Sensors with Automatic Setup and Indicator Light
• Automatic Self-adapting Sensor Technology
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 Volt DC Plug-in Transformer Included
• Appropriate Mounting Hardware included
• Optional 24 Hour Sentinel Activation
• Plug-in Transformer

• Integral Spout Mixer

• IQ-Click Control allows users to select between “continuous run” and “temporary off” simply by pressing a button on the spout

Optima I.Q. Variations:

• EAF-100-P-ISM CP – hot/cold supply – No IQ Feature
• EAF100-P CP (IQ) – pre-tempered water (single supply line) w/ IQ feature
• EAF100-P-ISM-IC CP (IQ) – hot/cold supply w/ IQ feature

• EAF100-P-ISM-DPU-IC CP (IQ) – hot/cold supply w/ IQ feature and pop-up drain

Optional Accessories:

• ETF-607-A – Trim plate for 3-hole, 4″ centers (centerset) installations
• ETF-608-A – Trim plate for 3-hole, 8″ centers (widespread) installations
