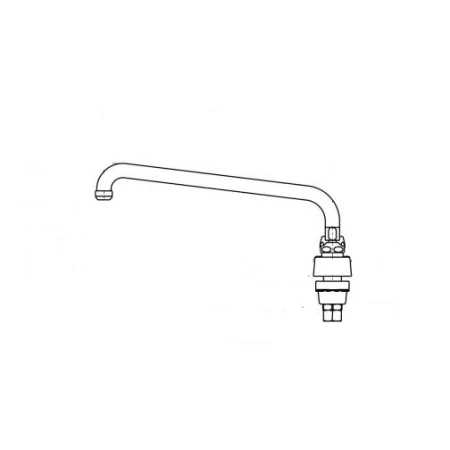

Deck Mounted Pot Filler Faucet With Lever Handles And 12″ Full-Flow Swing Spout

Product Features:

• Manufactured and assembled in the United States of America
• Faucet body and handles are covered under Chicago Faucet’s limited lifetime warranty
• Constructed of solid brass
• High quality chrome plated finish – finishes are covered under warranty for a year
• 12″ Swinging spout provides access to all areas of the sink
• Unrestricted full-flow outlet allows for rapid filling of pots or large bowls
• Single handle operation
• Quaturn compression operating cartridge – covered under warranty for 5 years
• Deck mount installation – mounts directly to sink or counter top
• Spout swivels 360-degrees to allow for unobstructed access to the whole sink
• ADA compliant
• Low lead compliant – meeting federal and state regulations for lead content
• Mounting hardware not included

The Chicago Faucets Benefit:

• Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.

• Quaturn Cartridge: The Quaturn cartridge was the industries first replaceable, completely self-contained valve cartridge. The cartridge allows the user to turn the water from full flow to off in just a quarter-turn. This unique cartridge was designed to close with the flow of the water rather than against it which reduces washer ware and virtually eliminates faucet drips. Although the Quaturn cartridge has been updated over the years to incorporate new technologies and materials it still holds true to its principals and is completely interchangeable with any Quaturn manufactured since 1913.

• ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.

Product Specifications:

• Faucet Height: 5-7/8″ (measured from mounting plate to top of spout)
• Spout Reach: 4″ (measured from center of faucet body to center of spout outlet)
• Faucet Centers: 8″ (center-to-center distance between installation holes)
• Flow Rate: Unrestricted
• Maximum Deck Thickness: 1-1/2″
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 – degrees Fahrenheit
• 4″ Wrist blade handle included with faucet
• 1/2″ Connection – designed for use with standard U.S. plumbing supply bibs
• Coupling nut for 3/8″ or 1/2″ flexible riser

Codes and Compliances:

• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1
