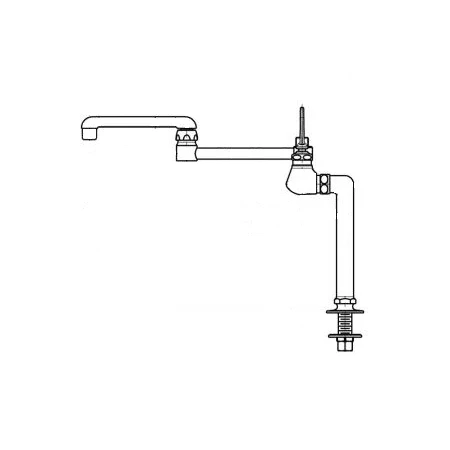

Bridge Style Pot Filler Faucet With Wrist Blade Handles, Double-Jointed Swing Spout And Risers

Product Features:

• Manufactured and assembled in the United States of America
• Faucet body and handles are covered under Chicago Faucet’s
• Constructed of solid brass
• High quality chrome plated finish – finishes are covered under warranty for a year
• Deck mounted hot and cold water mixing faucet
• Double handle operation – handles rest on 1/4 turn valve seats
• Full flow classic laboratory needle spout outlet
• Ceramic 1/4 turn operating cartridge – covered under warranty for 5 years
• Spout swivels 180-degrees to allow for unobstructed access to the whole sink
• ADA compliant
• Mounting hardware not included

The Chicago Faucets Benefit:

• Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.

Product Specifications:

• Overall Height: 11-7/8″ (measured from mounting surface to highest point on faucet)
• Spout Height: 10-1/2″ (measured from mounting surface to spout outlet)
• Spout Reach: 15-5/8″ (measured from center of faucet body to center of spout outlet)
• Required Installation Holes: 2
• Max Deck Thickness: 1-3/8″
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 degrees Fahrenheit
• 2 handles included with faucet
• 1/2″ connection – designed for use with standard U.S. plumbing supply bibs

Codes and Compliances:

• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1
